Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Warranty of core components : 1 Year
Core Components : cartridge filter
Condition : New
Efficiency : 99.9%
Construction : Cartridge Filter
Porosity : 0.3um
Place of Origin : Hebei, China
Brand Name : YITE
Dimension(L*W*H) : D325*660 mm
Weight : Light Weight
Warranty : 1 Year
Product name : Cartridge Filter
Material : Polyester Fiberglass
Application : Air Filtration System
Outer Diameter : 325 mm
Inner Diameter : 215 mm
Height : 800 mm
Filter area : 10.8 m2
Recommended flow : 518 m3/h
Limit traffic : 972 m3/h
Band Number : 2
After Warranty Service : Video technical support, Online support, Spare parts
Local Service Location : None
Showroom Location : None
Marketing Type : New Product 2020
After-sales Service Provided : Online support
Certification : ISO9001
Packaging Details :
1.standard sea transport or as per customer's requirement
2. The whole equipment is wrapped with moisture-proof film.
3The motor and other parts are packed in wooden cases
4. Fix the equipment in the container with bolts
Port : tianjin
Supply Ability : 1000 Piece/Pieces per Month Cartridge Filter
MOQ : 1
Price : $34.30/pieces 10-19 pieces
Hot sale Industrial dust pleated air cartridge filter
Industrial air cartridge filter is a common filter element of industrial dust collector. The structure of the filter cartridge is divided into four parts: top cover, metal frame, pleated filter material and base.Compared with conventional dust bag, it has the following advantages:
1. Pleated filter cartridge, increase the filtration area;
2. Increase the treated air volume and reduce the filtering wind speed;
3. Easy ash cleaning, small pressure difference, and compressed air saving;
4. The service life of the filter cartridge is prolonged;
5. dust filter cleaner Easy to install and replace.
High efficiency Industrial air cartridge filter
1. 100% polyester filter media
2. Filter efficiency up to 99.99%
3. Integrated design. quick and easy installation,maintenance
4. Wide pleat depth
5. PTFE membrane,antistatic etc.
Industrial air cartridge filter can be customized according to your specific working condition: size, material and other details | |||
Paper filter cartridge | Operating pressure | Mpa | 0.3 |
Rated flow | L/min | 600 | |
Working temperature | ℃ | 80 | |
Polyester filter cartridge | Operating pressure | Mpa | 30 |
Rated flow | L/min | 2000 | |
Working temperature | ℃ | ≤160 | |
Membrane filter cartridge | Membrane filter cartridge | Mpa | 30 |
Rated flow | L/min | 2000 | |
Working temperature | ℃ | ≤200 |
Table of main parametes for cartridge filter
Dimension | YT-LT01 | YT-LT02 | YT-LT03 | YT-LT04 | YT-LT05 | YT-LT06 | YT-LT07 | YT-LT08 | YT-LT09 |
Diameter(mm) | 325 | 325 | 325 | 325 | 230 | 230 | 230 | 190 | 190 |
Inner Diameter | 215 | 215 | 215 | 215 | 90 | 90 | 90 | 70 | 70 |
Height (mm) | 660 | 800 | 900 | 1000 | 700 | 900 | 1000 | 900 | 1000 |
Area (m2) | 8.9 | 10.8 | 12.1 | 13.5 | 4.5 | 5.8 | 6.5 | 3 | 3.4 |
Rec Flow(m3/H) | 428 | 518 | 583 | 648 | 216 | 278 | 312 | 144 | 163 |
For dust collector, the regular size is D325*660mm,D325*800 and D325*1000.
However, due to different requirements of customer, customization is also available .
![]() |

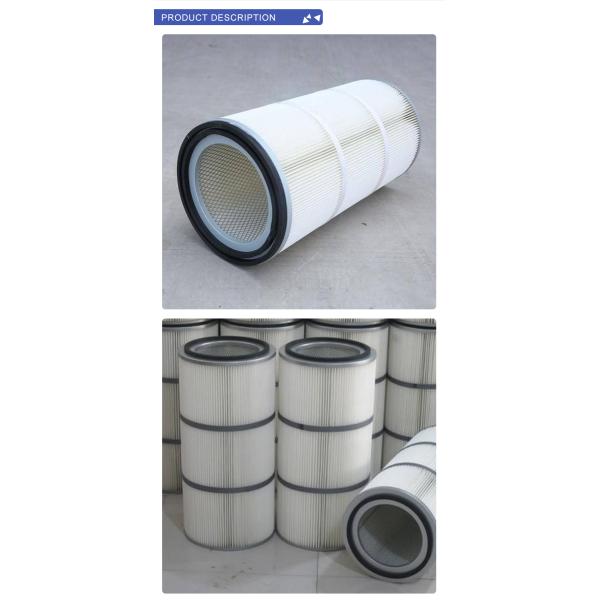

0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant Images |
